Audio spectrum by Matt Ottewill

The human ear is capable of hearing soundwaves of frequencies approximately between 20Hz (20 cycles per sec) and 20kHz (20,000 cycles per sec). This range of frequencies is known as the audio spectrum.

Now, click to watch our video at our sister site (or read on) ..

Relationship between Frequency and Pitch

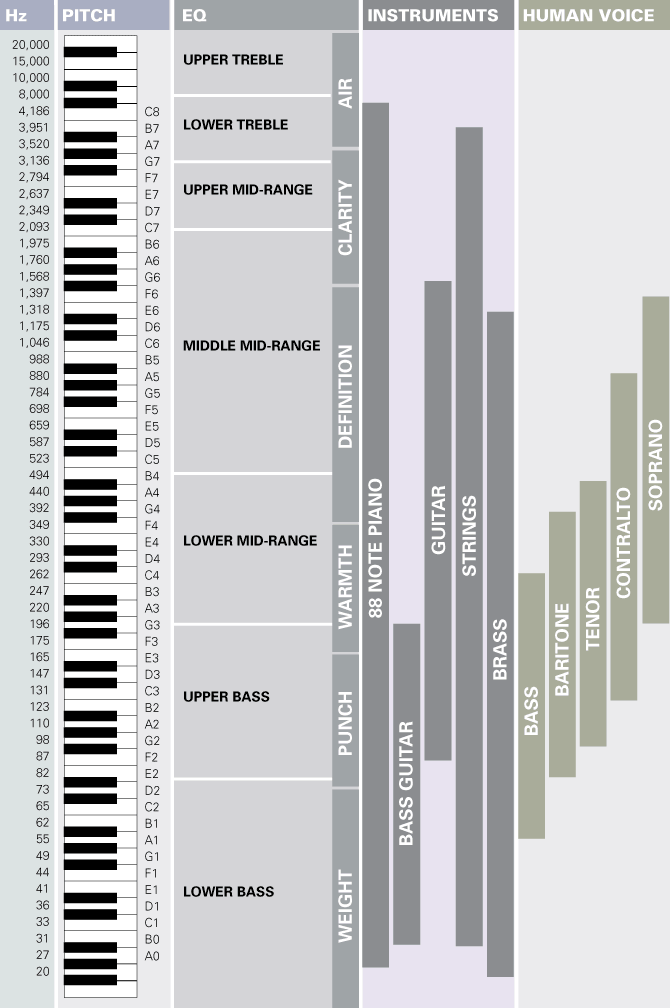

The frequency range of 20Hz to 20kHz is equivalent to about 10 octaves in pitch. An octave on a piano equals 12 notes (semitones). The higher the frequency the higher the pitch. A4 on a piano is 440Hz, therefore A5 is 880Hz and A3 is 220Hz (see diagram below).

  • Every increase in pitch by 1 octave = double the frequency.
  • Every decrease in pitch by 1 octave = halving the frequency.

audio spectrum
