Web typography & web fonts (June 2013)

For decades, graphic (print) designers have been able use almost any typeface (see our articles on typography and fonts), whilst web designers have been limited to fonts they could reasonably expect their end-users to have installed in their system folders. Whilst html 5 has addressed many of the limitations of layout, it has taken much longer for a workable and legal method to emerge which allows fonts to be 'delivered' to a browser to accompany an html doc and its linked media.

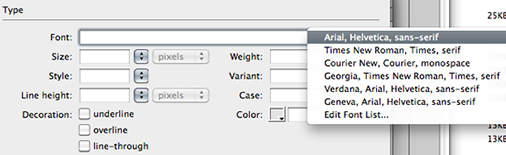

Dreamweaver's CSS web safe font list select dialogue box.

Having 'live' search engine friendly text on a web page (such as this) requires a font to be active on the system the browser is running on. But fonts cannot be easily moved from one computer to another because of license issues.

Typically this has meant specifying fonts from a conservative list of "web safe" fonts (or "families") which all devices already have installed (Arial, Times, Courier etc). But now some new solutions have emerged ..

Download licence free fonts, include a folder of these fonts with your site files, and use the @fontface CSS method to load them with the web page
Use the same @fontface CSS method to call the license free fonts from 3rd party web font provider on the fly
Use a font provider specific API to serve the fonts live on the fly

Recommended methods

We have given an overview of two methods for you to compare, web font server APIs, and @fontface.

Method 1 - web font server API

Both Adobe and Google have launched services to provide web fonts using their own APIs. They work well and the list of available fonts is growing. Their APIs handle all the browser technology compatibility issues for you, which we asume means they serve the correct font version for the device and OS. Google's list of supported browsers is here .. https://developers.google.com/fonts/faq#Browsers_Supported.

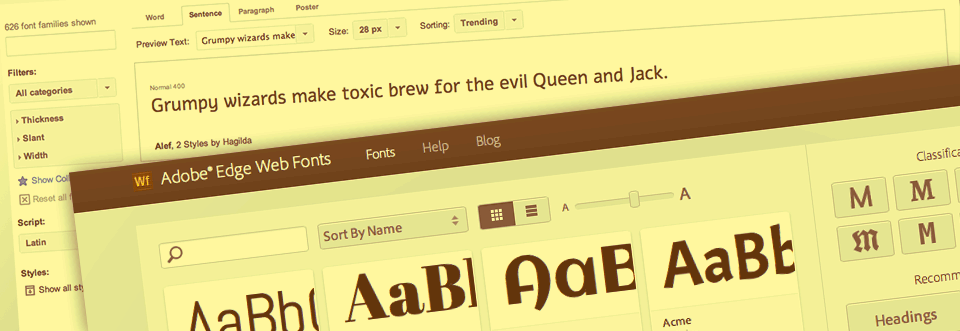

Google fonts.

The downsides are ..

fonts may slow page loading time (but because they are saved to the browser cache will be served locally on subsequent visits)
font servers could go offline
you must include the link code in the head tag of each page
there appear to be some inconsistencies in applying styles to parent elements

Here's how to do it with Googles free web font service ..

Go here .. http://www.google.com/fonts/
Choose your typeface (font family)
Select the fonts you want (light, bold, italic etc)
Copy the link code that Google provides
Paste the link code into the head tag of each page (eg <link href='http://fonts.googleapis.com/css?family=Open+Sans:300italic,300,700,800,400' rel='stylesheet' type='text/css'>)
Copy the CSS code that Google provides and integrate into your styles

Example link for the <head> tag

<link href='http://fonts.googleapis.com/css?family=Open+Sans:300,300italic,800' rel='stylesheet' type='text/css'>

This link, generated from Google fonts, specifies 3 fonts from the 'Open Sans' typeface, each with a differing font weight ..

Light (300)
Light italic (300italic)
Extra bold (800)

Example CSS styles

#contentcontainer h2 {
font-family: 'Open Sans',Verdana, Arial, sans-serif;
font-weight: 800;
font-size: 30px;
line-height: 1.3em;
}

p {
font-family: 'Open Sans',Verdana, Arial, sans-serif;
font-weight: 300;
font-size: 12px;
line-height: 1.8em;
color: #333;
}

Example site

Check out my site .. www.mattottewill.com

Method 2 - using @fontface

The new @font-face CSS method allows text in html documents to be styled with fonts that are loaded live with the web page from the web site server or a third party font foundry server. Several font foundries and business now offer online licensed fonts which a web designer can either link to, or acquire and upload to with the other files that constitute a site (HTML, CSS, .js, images etc).

On the face of it, this sounds an ideal solution, but licensing and differing browser font technology support issues are still to be fully resolved and workaround’s are required to get reasonably compatibility between devices and platforms. More detail on this later.

Example

In this example, 3 license free fonts from the Aller font family have sourced and saved in a folder entitled "fonts" within the local site. Note that fonts do not need to be stored locally. If you use a URL they can be retrived on the fly from a 3rd part font server web site.

They are then defined as a font family and used in specific tags (body and h2).

Here's some example CSS ...

@font-face {
font-family: AllerLight;
src: url('fonts/Aller/Aller_Lt.ttf');
}
@font-face {
font-family: AllerBold;
src: url('fonts/Aller/Aller_Bd.ttf');
}
body {
font-family: AllerLight;
}
h2 {
font-family: AllerBold;
}

In this example true type fonts (.ttf) are being used. The advantage of the method is that the fonts do not need to load from a 3rd party server (which may be slow or go down). The disadvantage is that .ttf is not supported by all browsers.

Acquiring license free fonts

Note that to achieve good cross browser compatibility you will need .ttf and .eot versions of all the fonts. See below for how to convert .ttf to .eot.

Bowser font compatibility issues

Unfortunately, because different browsers support different font types, you must include multiple versions of your font and use vendor prefixes to ensure your typography looks consistent across browsers. For example, OSX and iOS Safari supports .ttf and .otf but iOS pre 4.2 uses SVG.

View in Landscape mode or Swipe to scroll

Platform	Type technology supported
IE	.eot
Chrome	.ttf, .svg
FireFox	.otf, .ttf
Safari OSX	.otf, .ttf
Safari iOS 4.2	.otf, .ttf
Safari iOS 4.1	.svg

More detail here ... http://webfonts.info/wiki/index.php?title=@font-face_browser_support

There are workaround’s and these links will help you decide if you want to try them ...

IE and iOS4.1 work-around

This simple CSS method will solve the IE and iOS4.1 problem ...

@font-face {
font-family: AllerLight;
src: url('fonts/Aller/Aller_Lt.eot') format('opentype'); /* for IE*/
src: url('fonts/Aller/Aller_Lt.ttf'), url('fonts/Aller/Aller_Lt.svg#webfont') format('svg');
font-weight: normal;
font-style: normal;
}

Note that you need .svg, .ttf and .eot versions of the font.

Making .OET versions of your .TTF's

Try these converters

Round-up of methods - pros and cons

The following table shows the current primary methods for using typography on web pages with their attendant pros and cons.
